Setup your system

The basic Inniti system contains the following components:

  • An edge server with power supply
  • An ethernet cable
  • 2 Wi-Fi antennas & 2 mobile antennas
  • A router with power supply

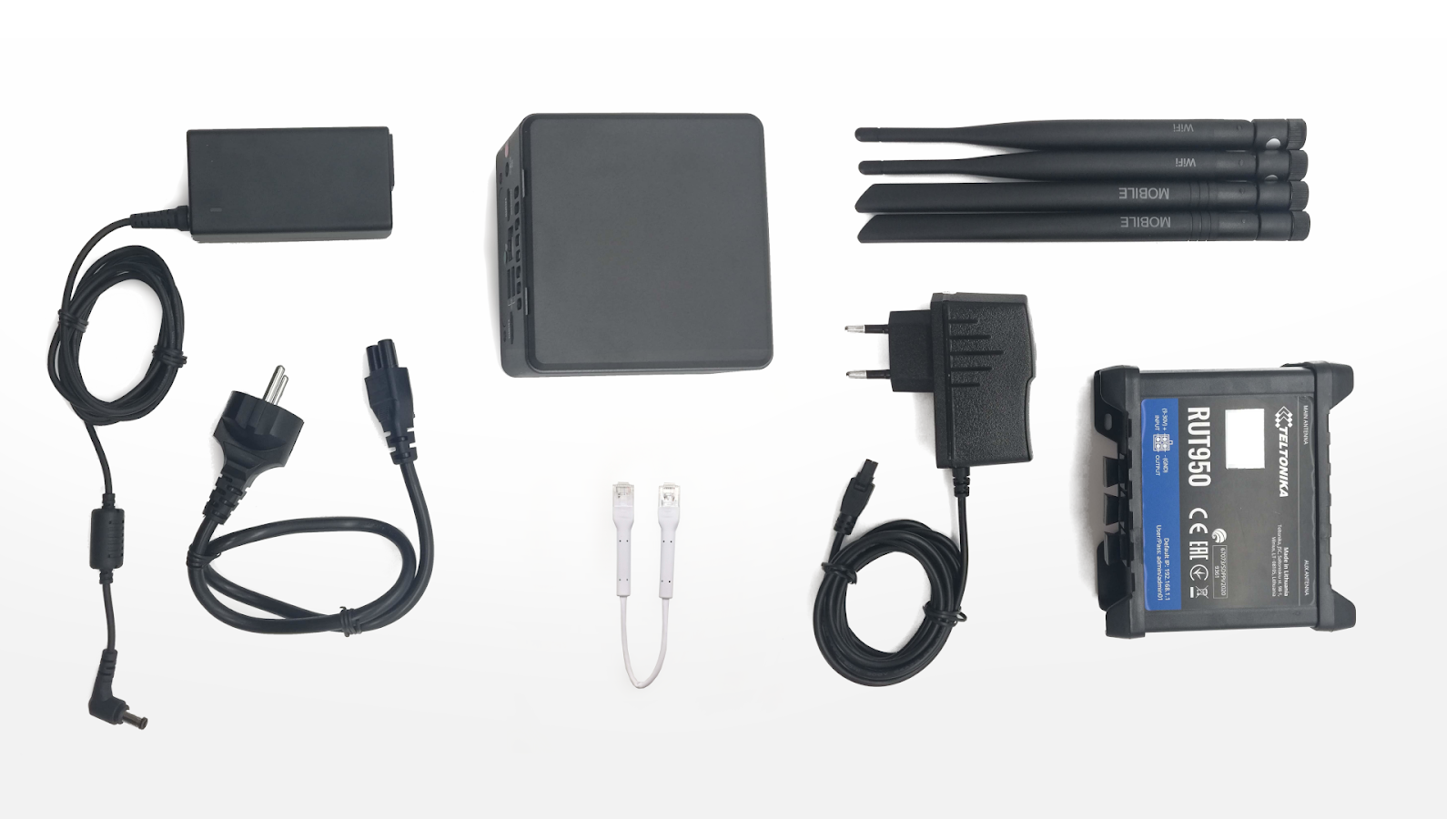

Demo kit component overview

Getting up and running​

  1. Screw the four antennas into the mobile router. Note that the two labelled WiFi should be connected to the WiFi connectors on the router and same for those labelled Mobile.

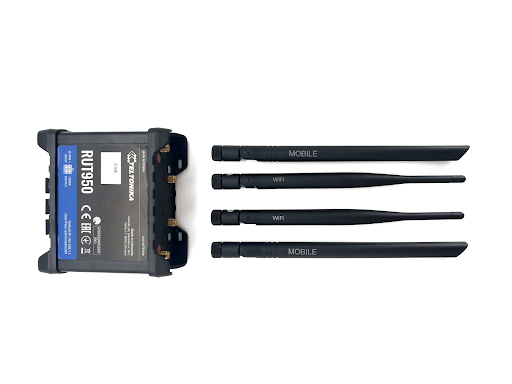

Demo kit router with antennas
  1. Connect the router power supply.

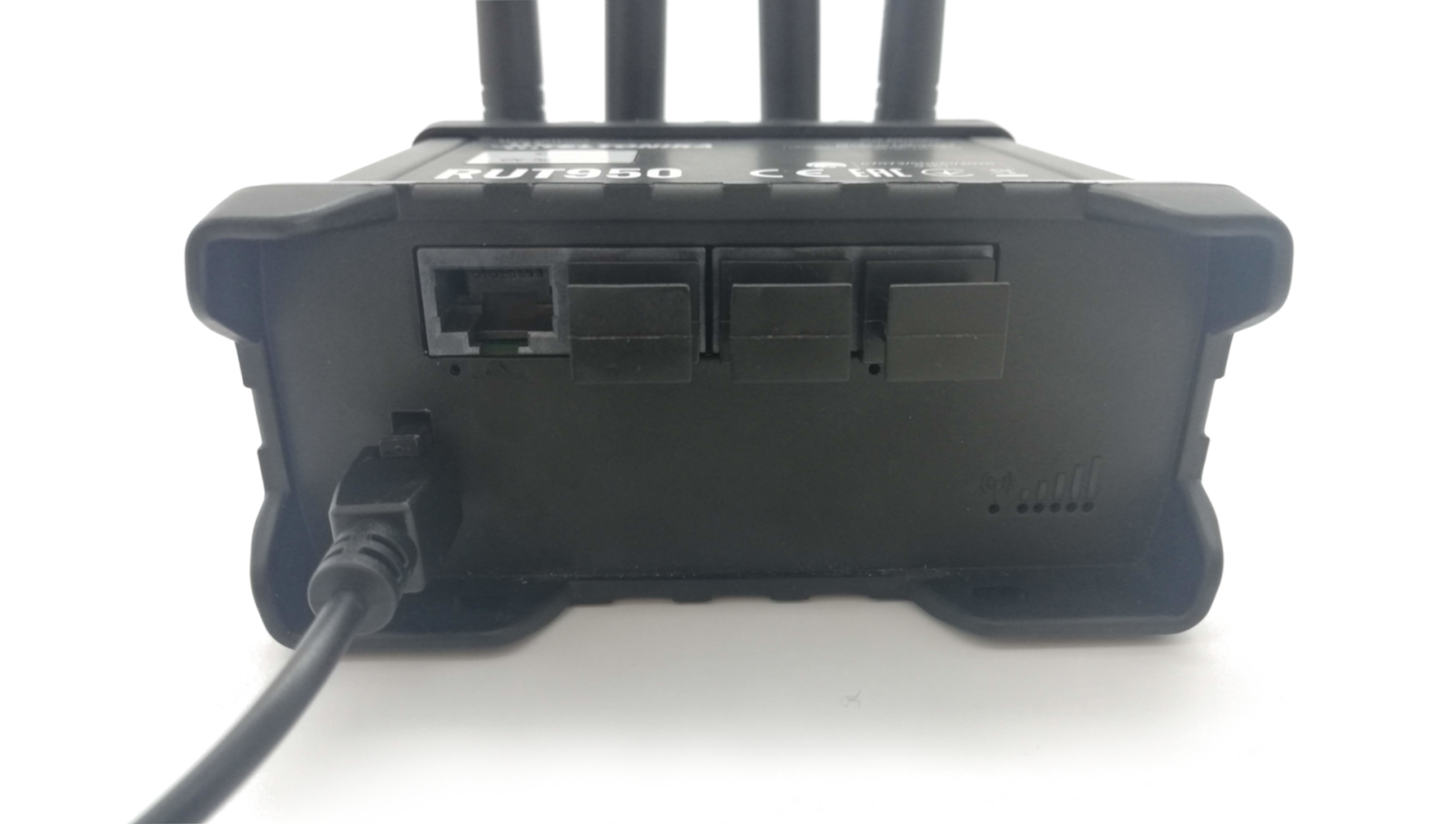

Demo kit router power supply
  1. Connect the edge server power supply.
  2. Connect the edge server and the router using the ethernet cable, using the LAN 1 port of the router.

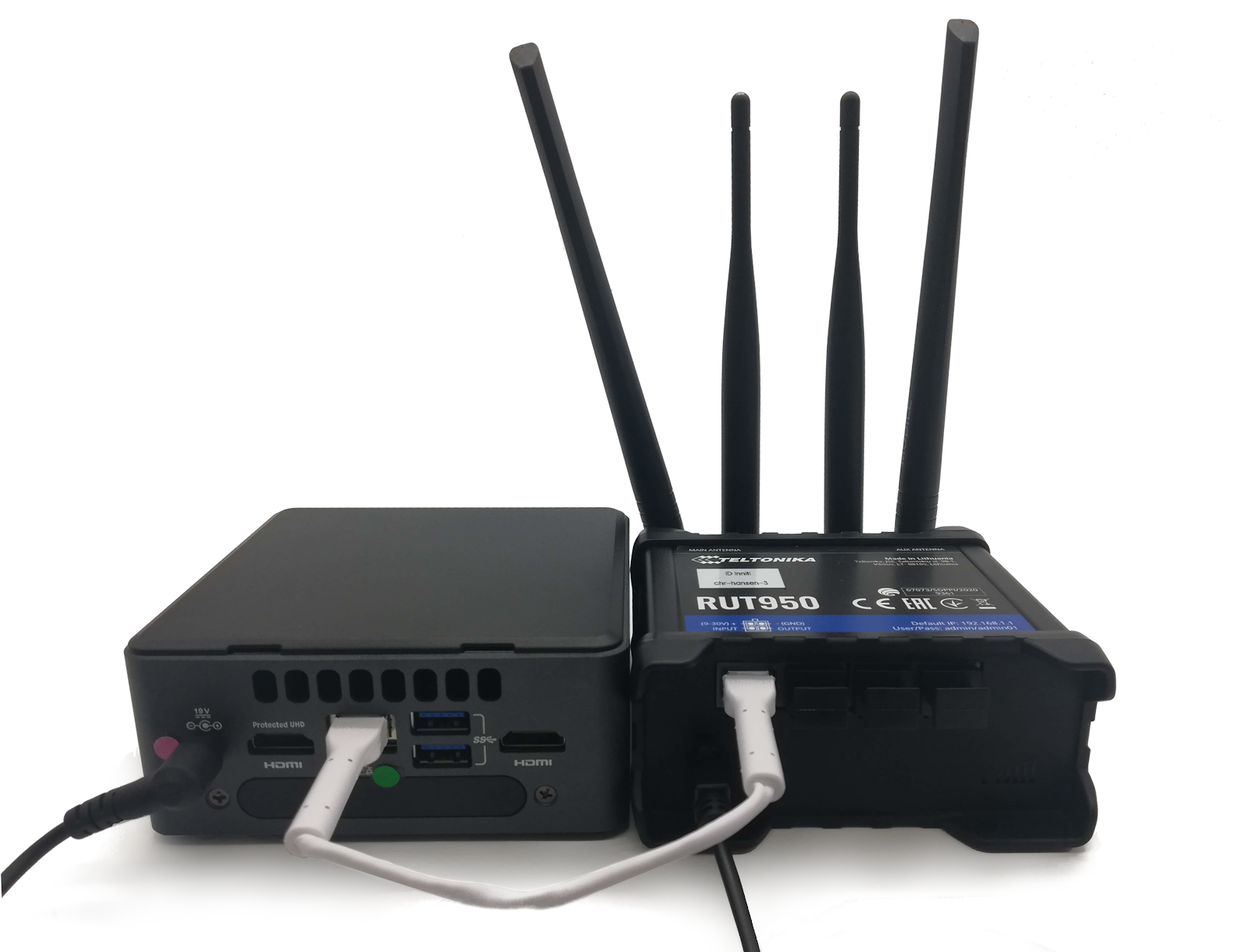

Demo kit edge server router connection
  1. To power up the Inniti Power Box:
    • Connect the 24V power supply
    • Connect the emergency stop button. To ensure the emergency stop button is in the normal operation mode, rotate the button in the direction indicated by the arrow.

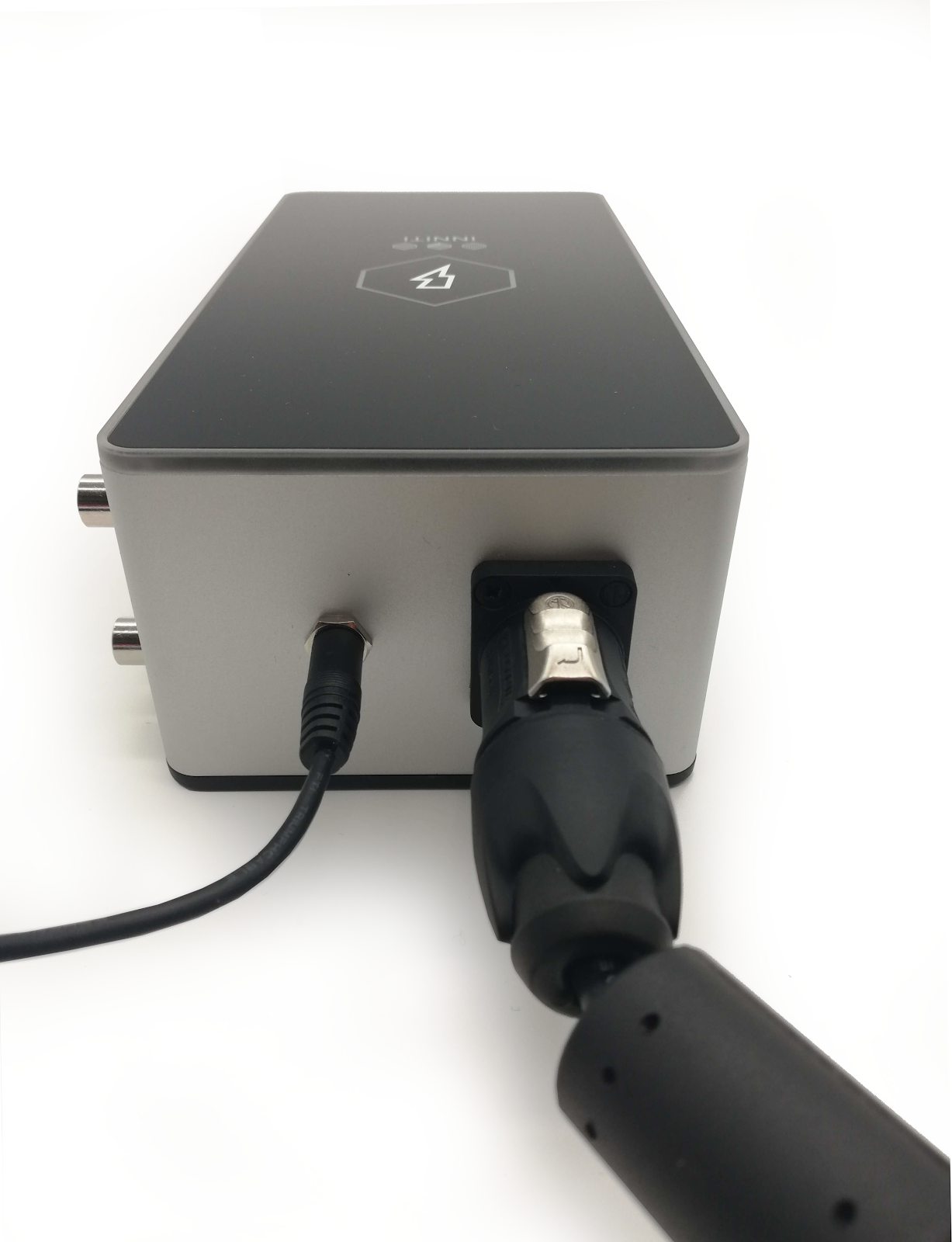

Demo kit power box connection
  1. Once the router, edge server and Inniti Power Box are connected to power, verify that the three LEDs are blue on the Power Box and the power button on the edge server is also blue.

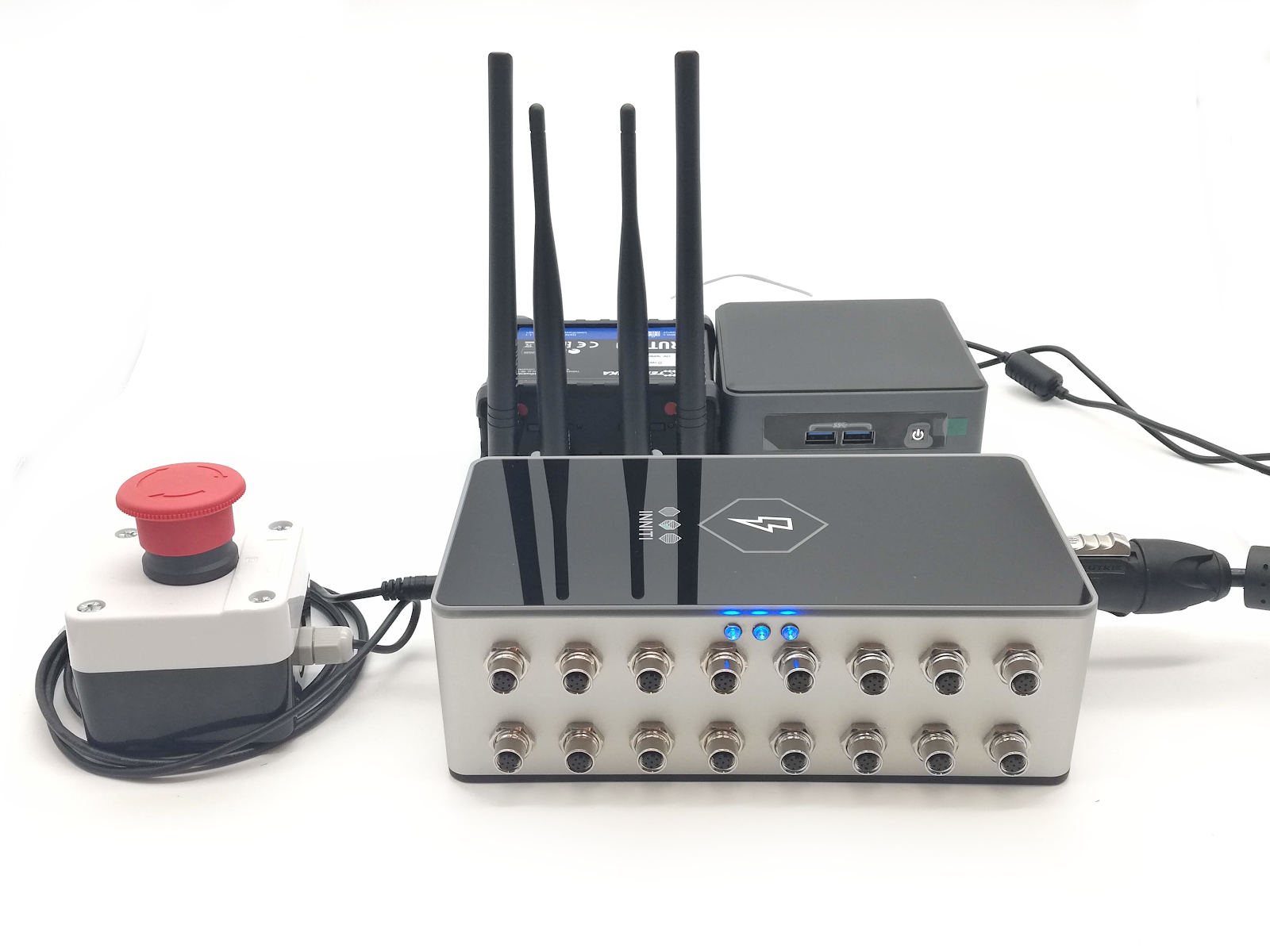

Demo kit all components connected
  1. You are now ready to start connecting Inniti Connectors to the Power Box and run your first experiment!
